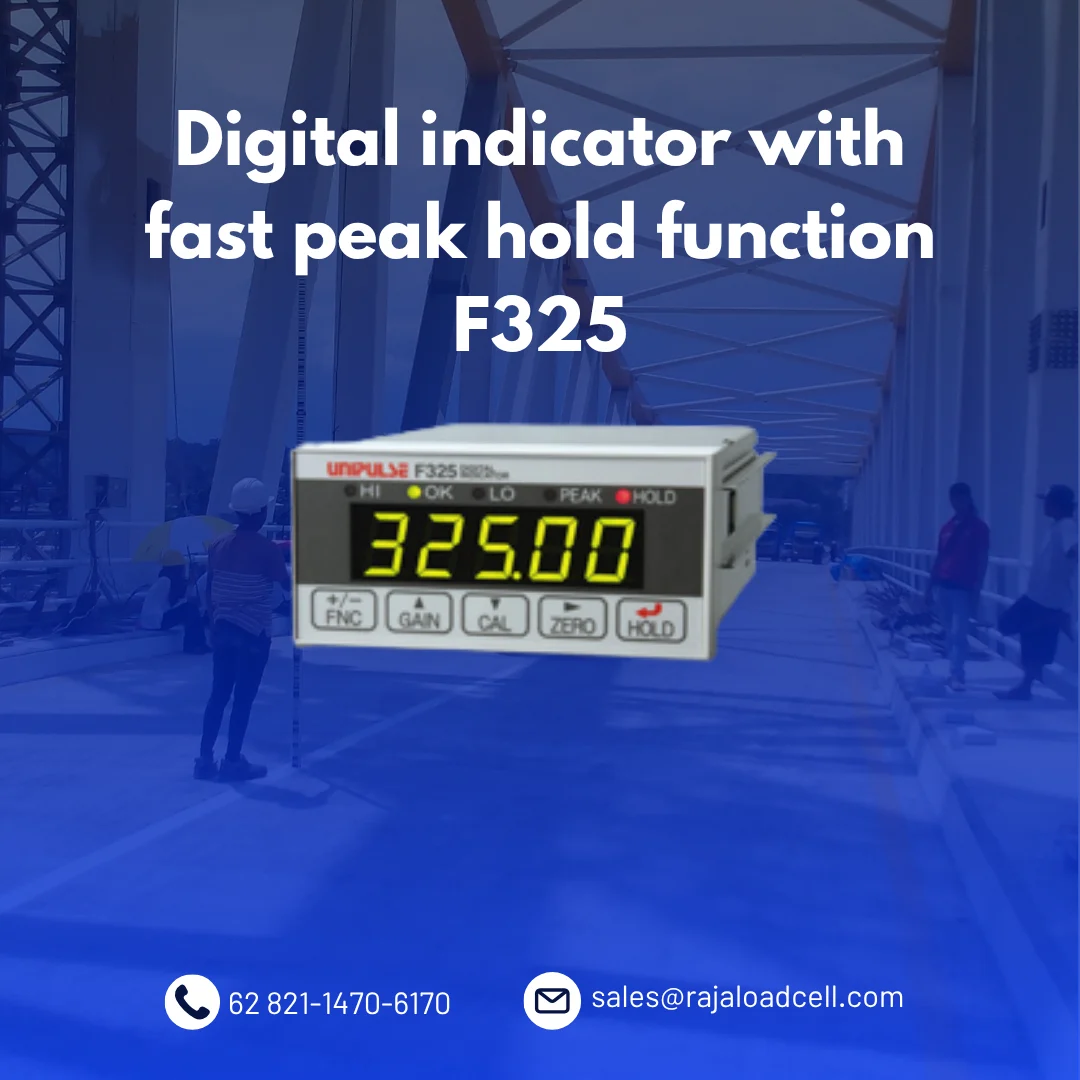

Specifications
| Analog section | |
| Excitation voltage | DC 10 V, 2.5 V±10% (Depending on setting) Output current: within 30 mA |
|---|---|
| Signal input range | -3.0 to +3.0 mV/V |
| Accuracy | Non-linearity: 0.02% FS±1 digit (at 3 mV/V input) Zero drift: within 0.5 μV/℃ RTI Gain drift: within 25 ppm/℃ |
| A/D converter | Speed: 30, 300, 3000 times/sec. (Depending on setting) Resolution: 24 bit (binary) |
| Analog filter | Primary low-pass filter select frequency from 10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz or 30kHz |
| Digital filter | Filter 1: Bessel low-pass filter (secondary) Cut-off frequency can be set to any value from 1/300 to 1/10 of sampling speed. (It can be turned off.) 3000 times/sec.: 10 to 300 Hz, 300 times/sec.: 1 to 30 Hz, 30 times/sec.: 0.1 to 3 Hz Filter 2: Moving average You can set the value anywhere between OFF, 2 to 999 times. |
| Resolution | 1/30000 (at 3.0 mV/V input) |
| Analog monitor output | Sensor input of approx. 2 V per 1 mV/V (Input resistance over 2 kΩ or more) |
| Hold function | Sample or peak hold (You can chose either analog or digital peak hold from setting menu. Frequency response of analog hold is 1 kHz) |
| Display section | |
| Display unit | 15 mm character height: 7-segment green LED (5-digits) Numerical value: 5-digits Indicated value: -19999 to +99999 Decimal points: Selectable decimal point displaying position (0.000, 0.00, 0.0, 0) |
|---|---|
| Display items | Status display: Red LED: HI, LO, PEAK, HOLD Green LED: OK Display frequency: selectable from 3, 6, 13 and 25 times/sec. |
| External I/O signal | |
| External input (3) |
DZ, HOLD, H.RESET ＜Volt-free contact input＞ External devices can be connected, such as relays, switches, transistors and so on. The signal can be outputted by making short-circuit between input and common terminal. In case transistor is connected, please use NPN (sink) transistor. Internal power supply voltage: DC 12 V, When short-circuited: Approx. 4 mA ＜DC-Input for both plus common and minus common type＞ (please specify the type of input when ordering) External devices can be connected, such as relays, switches, transistors and so on. Input signal is outputted by applying voltage between input and common terminal. In case a transistor is connected, please use NPN type for plus common and PNP type for minus common. Maximum Rated Voltage: DC 27.6 V, “ON”: when the voltage is above DC 9 V (Load Current: approx. 10 mA at DC 24 V), “OFF: ” below DC 3 V. |
|---|---|
| External output (5) |
HI, OK, LO, Output Selection 1, Output Selection 2 (Assign output from various selection: HH, LL, Overload, RUN, HOLD, NZ, DZ response) PhotoMOS relay output (common for sink and source type) Maximum rated voltage: DC 30 V, maximum rated current: 100 mA, operating time: approx. 1 msec |
| Interface (Only one option can be installed) |
|
| 485 | RS-485 communication interface (Modbus-RTU/ UNI-format) |
|---|---|
| SIF | SI/F |
| BCO | BCD parallel data output interface (sink type) (Option) |
| BSC | BCD parallel data output interface (source type) (Option) |
| DAV | D/A converter (voltage output) (Option) |
| DAI | D/A converter (current output) (Option) |
| 232 | RS-232C communication interface (Option) |
| General specifications | |
| Power supply voltage | AC spec.: AC 100 V to 240 V (+10% -15%) (free power supply 50/60 Hz) DC spec.: DC 12 V to 24 V (±15%) (please specify the type of input when ordering) |
|---|---|
| Power consumption | AC spec. 3 W typ. / DC spec. 4 W typ. |
| Rush current Typ. AC spec. |
2 A, 1 msec：AC 100 V average load condition (cold start at room temperature) 4 A, 1 msec：AC 200 V average load condition (cold start at room temperature) |
| Rush current Typ. DC spec. |
2 A, 20 msec：DC 12 V average load condition (cold start at room temperature) 1 A, 50 msec：DC 24 V average load condition (cold start at room temperature) |
| Operating conditions | Operation temperature: -10 to +40℃ Storage temperature: -40 to +80℃ Humidity: 85% RH or less(non-condensing) |
| External Dimension | 96(W) × 48(H) × 132.5(D) mm (Not including projections) |
| Weight | Approx. 600 g |
| CE marking certification | EMC directives: EN61326-1 Safety standard: EN61010-1, EN62311 |
| Attachments | |
| AC input cord 3 m (AC power supply is selected) |
1 |
|---|---|
| 3P-2P conversion adapter (AC power supply is selected) |
1 |
| I/O connector block (wire entry holes: bottom)*1 | 1 |
| I/O connector block (wire entry holes:top)*1 | 1 |
| Operation manual | 1 |
| Terminator (RS-485 is selected) | 1 |
| BCD output connector (BCD output option is selected) | 1 |
*1 Already mounted on the main unit
| Optional accessories | |
| CA325AC3P-B3 | AC input cord 3 m (Same as the attachment) |
|---|---|
| CA325AC3P-CEE7/7-B2 | AC Supply cord (Voltage resistance: 250 V) 2 m |
| CN3P-2P | 3P-2P converter plug for AC input cord (Same as the attachment) |
| CN51 | BCD output connector |
| CN82 | I/O connector block (wire entry holes: front) |
| CN83 | I/O connector block (wire entry holes: bottom) (Same as the attachment) |
| CN84 | I/O connector block (wire entry holes: top) (Same as the attachment) |
| TSU03 | DC Lighting surge unit |
