Specifications

Analog section
Sensor excitation voltage 10/2.5 V DC ±10%; Output current: within 30 mA
Signal input range -3.0 to +3.0 mV/V
Accuracy Non-linearity: within 0.02% FS (at 3 mV/V input)
Zero drift: within 0.5 μV/°C RTI
Gain drift: within 25 ppm/°C
A/D converter Speed: 100 times/sec.
Resolution: 16 bit (binary)
Analog filter Selectable from 4 Hz, 10 Hz, 100 Hz, 3 kHz
Low-pass filter (-6 dB/oct.)
Peak hold function
(High-speed analog hold method)		 At 3 mV/V input: Performance response speed: approx. 1 kHz (at sine wave input, analog filter 3 kHz)
Accuracy: 0.1% FS or less, Reset time: 50 μs or less
Voltage output Analog voltage proportional to sensor input; Output level: approx. 2 V per 1 mV/V input
SI/F output Output data: Indicated value, status
Display section
Display unit 15 mm character height; 7-segment red LED numerical display (5 digits)
Digit numerals: ±8.8.8.8.8
Indicated value: -19999 to +19999
Decimal points: selectable decimal point displaying position
Display items Status display: 5 red LED display for HI, OK, LOW, PEAK, HOLD
Display times/sec: selectable from 3, 6, 13 and 25 times/sec.
Setting section
Setting items Calibration: Zero/ Span calibration (actual load/equiv. input calibration)
HI limit, LO limit, HI/LO comparison mode, hysteresis, digital offset, near zero, digital filter, analog filter, motion detect, zero tracking, hold mode, auto print, hold value print, LOCK, min scale, display frequency, excitation voltage, BCD data update rate, RS-232C, D/A converter zero setting, D/A converter full scale setting
External signal
External I/O signal HI limit relay (N/O) output, LO limit relay (N/O) output, digital zero input, hold input
Interface SIF: 2-wire type serial interface
BCO: BCD parallel data output interface (Option)
DAV: D/A converter interface (voltage output) (Option)
DAI: D/A converter interface (current output) (Option)
232: RS-232C communication interface (Option)
* Only 1 option can be installed.
General specifications
Power supply voltage 100 V to 240 V AC (+10% -15%) (Free power supply), 50/60 Hz, 12 to 24 V DC (±15%) (Please specify when ordering.)
Power consumption AC spec. 4 W typ. / DC spec. 6 W typ.
Operating conditions Operating temperature range: -10 to +40°C
Storage temperature range: -40 to +80°C
Humidity: 85% RH or less (non-condensing)
Dimensions 96(W) × 96(H) × 135(D) mm (Not including projections)
Panel cutout dimensions 92 × 92(+1-0) mm
Weight Approx. 0.9 kg
CE marking certification EMC directives: EN61326-1
Safety standard: EN61010-1, EN62311
Attachments AC input cord (Nominal rating 125 A) 3 m * ×1
3P-2P conversion plug for AC input cord * ×1
Mini screwdriver ×1
Ferrite core for sensor cable ×1
Ferrite core for AC input cord * ×1
BCD output connector (when BCD output option is installed) ×1
Operation manual ×1
* Included only for AC power supply specification

Option

Model
BCO BCD parallel data output interface
232 RS-232C communication interface
DAV D/A converter interface (voltage output)
DAI D/A converter interface (current output)

Optional accessories

Model
CAAC3P-B3 AC input cord 3 m
CA325AC3P-CEE7/7-B2 AC input cord (Voltage resistance: 250 V) 2 m
CN3P-2P 3P-2P converter plug for AC input cord
CN35 D-Sub25p connector for RS-232C
CN21 BCD output connector
TSU01 Lightning surge unit
TSU03 Lightning surge unit, DC specification
E04SR301334 Ferrite core

Structure of product code


Product outline

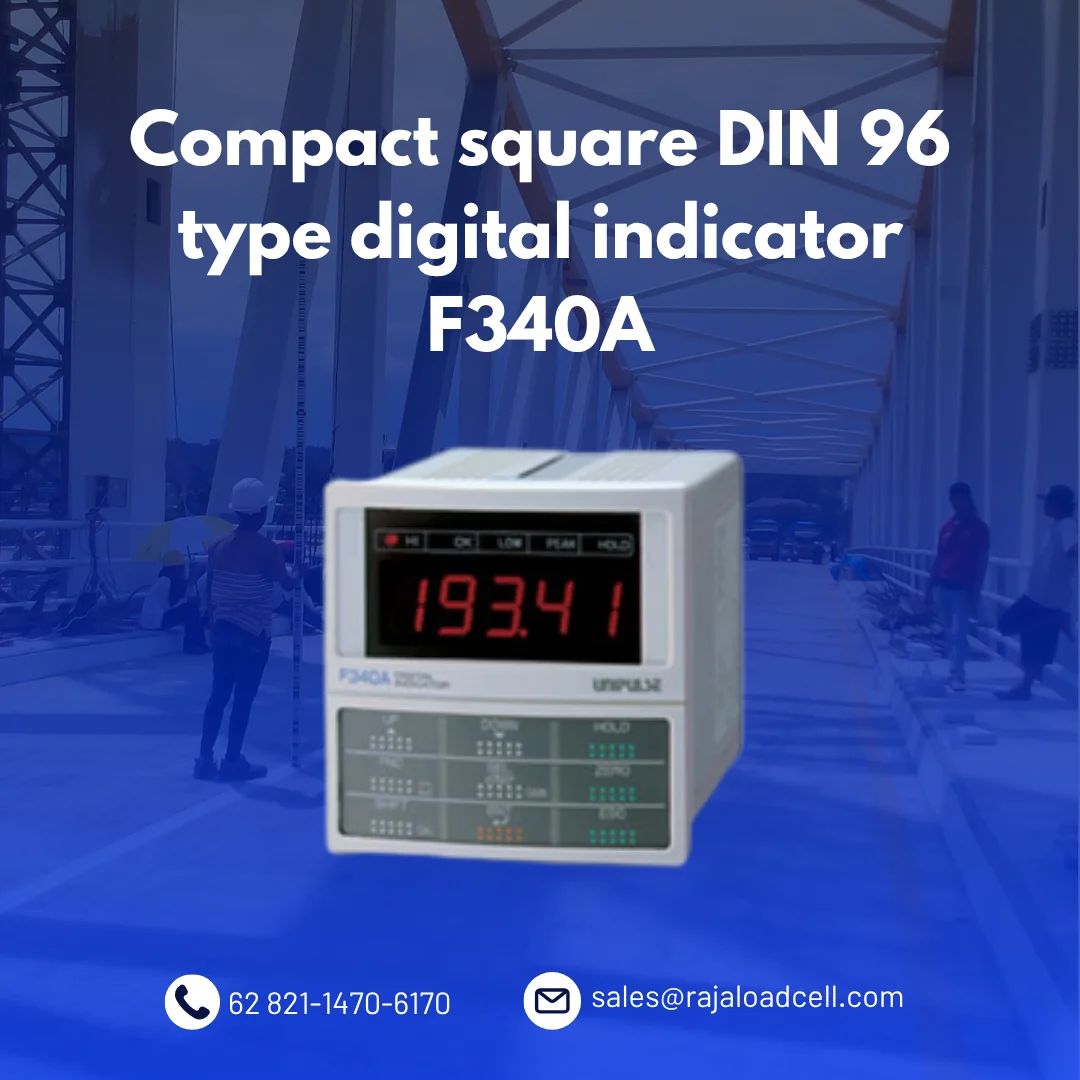

F340A adalah indikator digital untuk sensor tipe strain gauge yang digunakan untuk mengukur tekanan, beban, dan torsi. Alat ini sangat cocok digunakan dalam proses penilaian kelulusan (Pass/Fail) yang dilakukan oleh perangkat dan penguji otomatis. F340A merupakan perangkat praktis dengan ukuran ringkas standar DIN 96 persegi, dilengkapi dengan fungsi peak/sample hold, serta fungsi kalibrasi input ekuivalen yang memungkinkan proses kalibrasi hanya dengan memasukkan nilai terukur sensor melalui tombol, tanpa perlu memberikan beban secara langsung. Meskipun memiliki berbagai fungsi yang praktis ini, indikator digital ini tetap ditawarkan dengan harga yang terjangkau.
