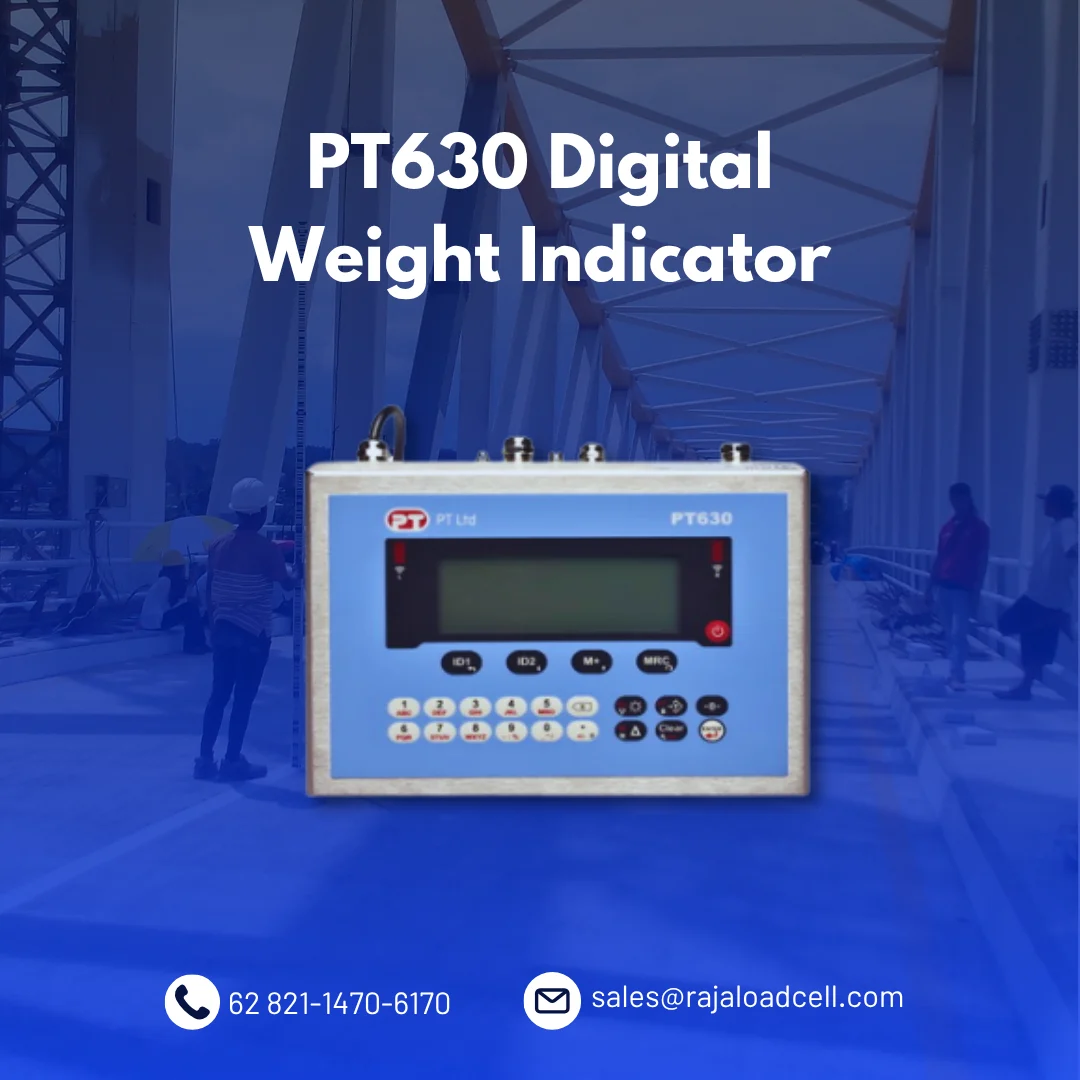

PT630 Advanced Weighing Indicator

PT630 Advanced Weighing Indicator

Categories ,
Pdf_icon PT630 Datasheet
Product Brochure and Specifications
SPECIFICATIONS
A/D converter type 24 bit Delta-Sigma ratiometric with integral analogue and digital filters
Conversion Rate Up to 800 conversions per second.
Input sensitivity 0.4 μV/d (approved); 0.05μV/d (non approved)-5mV to +19mV
Analogue input range -5mV to +19mV
Zero offset adjustment range -5mV to +19mV
Display resolution up to 10 000 increments (approved); up to 999 999 increments (industrial)
Internal resolution up to 16 000 000
Non-linearity, temp. coefficient Within 0.0015% FS, < 2 ppm/ºC
Display Wide view angle backlit LCD with 6x 22mm digit height main numerals and 16x 8mm alphanumeric characters. Display of units and status. Bar graph. 3 backlight colours, selectable or programmable, smart bar status.
Scale Capacity and units Up to 300 000kg, Units g, kg, oz, lb Metric/Imperial switchable
Calibration Span calibration with weights, even without without zero calibration.
vCal for calibration by direct entry of load cell characteristics.
Temporary zero calibration, Zero adjustment, Gain adjustment
Calibration of span and zero by fieldbus commands.
Digital filter 5 step programmable adaptive digital filter, Dynamic/Animal weighing
Weighing functions Tare, zeroing, auto zero track, motion detection, auto-zero at power up, tare status save at power off, increased resolution, automatic tare and clear, temporary gross indication, unit change.
Other Functions Pre-settable label (print ticket) count number, gross or tare indication, storage for 500 sets of setpoints. 2nd scale option for the PT630.
Load cell Excitation 5VDC 125mA
Number of load cells Up to 8 load cells 350Ω, 16 load cells 700Ω, in parallel.
Load cell connection 4 or 6 wire connection. Cable length: maximum 1000 m/mm² for 6-wires
RS-232 (2x 3 wire) and modes 1200 to 57600 baud, 7/8 bit, E/O/N. Command, continuous, Printer, BSI, BSI-PRO.
RS-485 and modes 1200 to 57600 baud, 7/8 bit, E/O/N. Command, continuous, Printer, BSI, BSI-PRO output. Up to 31 units on the bus.
USB Standard USB for Mini-B cable (internal on PCB). Command, continuous, Printer, BSI, BSI-PROI communications.
Ethernet onboard 10 / 100 Mbit/s, Full duplex. Manual IP assigned with EtherX PC Software or by front panel in programming mode. Server or Client modes. Switched Ethernet transmission with shiel

Azure Series Advanced with Apps and Fieldbus

The PT630 is one of the series PT610, PT620, PT630 advanced indicator series, built robust for industrial, agricultural and hygienic area operation.

The PT630 is an advanced, high quality general purpose weighing indicator for industry in a durable IP67 stainless steel housing. Ideal for platform, truck and hopper scales among other applications and is available with a wide range of options.

The PT630 is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 10000 intervals in accordance with OIML R76. Weighing, and Dynamic weighing for animals and fluctuating loads, check weighing, classifying, filling and counting are standard as is printing which is selectable from 6 languages.

Powerful Bi-directional Serial Interface (BSI-BASE, BSI-PRO) communication as standard. A wide range of options is available for integration by Fieldbus connectivity, desk, wall or panel mounting and digital I/O.

Easy, practical operation via navigation keys with 6 large 22mm digits, 16 alphanumeric characters 8mm high and wide viewing angle, multi-colour backlit LCD display.

The PT630 is powered by AC power with integral mains cable. A version is available for powering from 12-28VDC.
Hubungi via WhatsApp

Description

Pdf_icon PT630 Datasheet
Product Brochure and Specifications
SPECIFICATIONS
A/D converter type 24 bit Delta-Sigma ratiometric with integral analogue and digital filters
Conversion Rate Up to 800 conversions per second.
Input sensitivity 0.4 μV/d (approved); 0.05μV/d (non approved)-5mV to +19mV
Analogue input range -5mV to +19mV
Zero offset adjustment range -5mV to +19mV
Display resolution up to 10 000 increments (approved); up to 999 999 increments (industrial)
Internal resolution up to 16 000 000
Non-linearity, temp. coefficient Within 0.0015% FS, < 2 ppm/ºC
Display Wide view angle backlit LCD with 6x 22mm digit height main numerals and 16x 8mm alphanumeric characters. Display of units and status. Bar graph. 3 backlight colours, selectable or programmable, smart bar status.
Scale Capacity and units Up to 300 000kg, Units g, kg, oz, lb Metric/Imperial switchable
Calibration Span calibration with weights, even without without zero calibration.
vCal for calibration by direct entry of load cell characteristics.
Temporary zero calibration, Zero adjustment, Gain adjustment
Calibration of span and zero by fieldbus commands.
Digital filter 5 step programmable adaptive digital filter, Dynamic/Animal weighing
Weighing functions Tare, zeroing, auto zero track, motion detection, auto-zero at power up, tare status save at power off, increased resolution, automatic tare and clear, temporary gross indication, unit change.
Other Functions Pre-settable label (print ticket) count number, gross or tare indication, storage for 500 sets of setpoints. 2nd scale option for the PT630.
Load cell Excitation 5VDC 125mA
Number of load cells Up to 8 load cells 350Ω, 16 load cells 700Ω, in parallel.
Load cell connection 4 or 6 wire connection. Cable length: maximum 1000 m/mm² for 6-wires
RS-232 (2x 3 wire) and modes 1200 to 57600 baud, 7/8 bit, E/O/N. Command, continuous, Printer, BSI, BSI-PRO.
RS-485 and modes 1200 to 57600 baud, 7/8 bit, E/O/N. Command, continuous, Printer, BSI, BSI-PRO output. Up to 31 units on the bus.
USB Standard USB for Mini-B cable (internal on PCB). Command, continuous, Printer, BSI, BSI-PROI communications.
Ethernet onboard 10 / 100 Mbit/s, Full duplex. Manual IP assigned with EtherX PC Software or by front panel in programming mode. Server or Client modes. Switched Ethernet transmission with shiel
