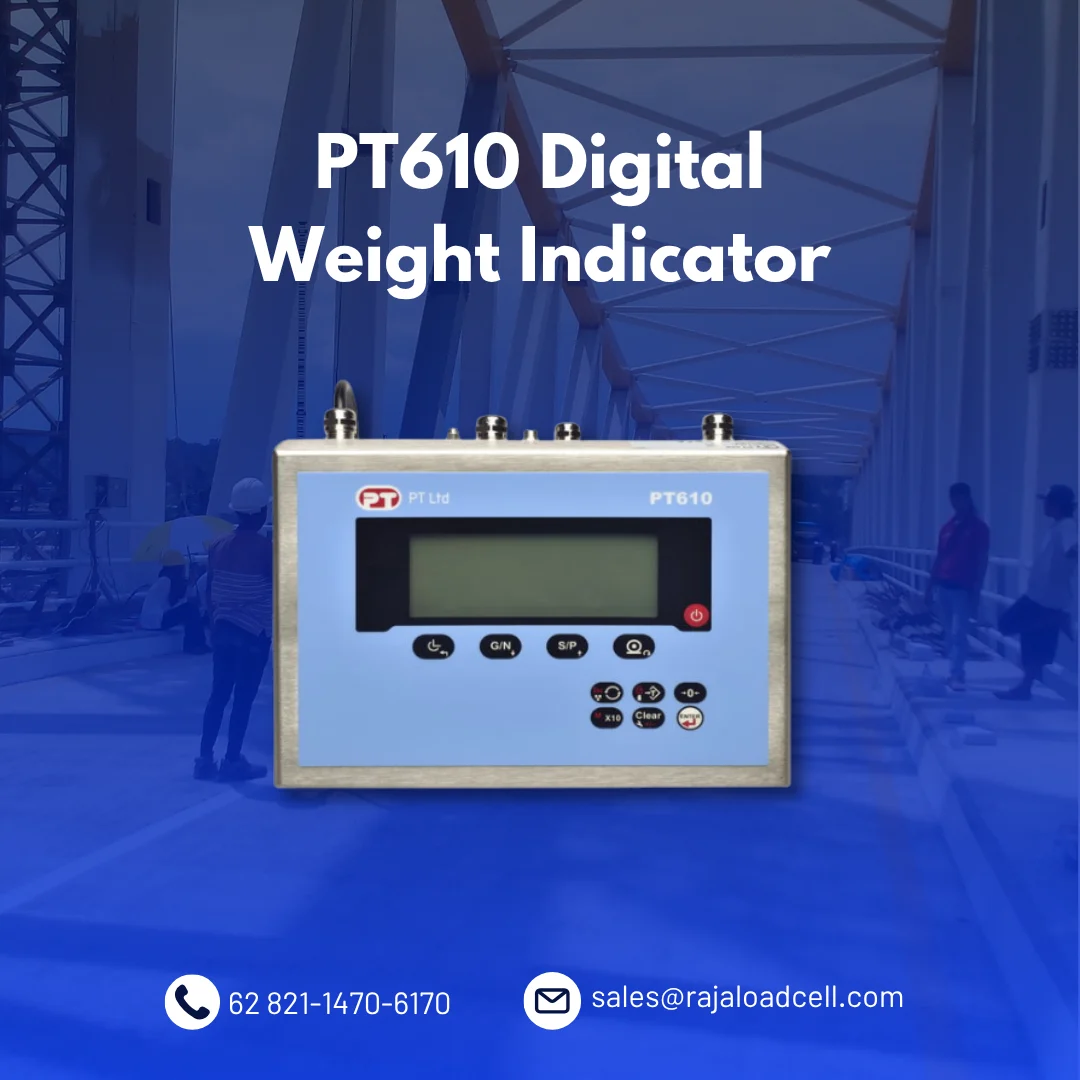

PT610 Datasheet |
| Product Brochure and Specifications |
Details in the table below show the comprehensive offerings built into this advanced state of the art digital indicator.
|
Models
|
Desk Mount | PT610DM | PT620DM | PT630DM |
| Wall Mount | PT610WM | PT620WM | PT630WM | |
| Panel Mount | PT610PM | PT620PM | PT630PM | |
| Touch Free IR Keys (2 Keys) | n/a | n/a | Yes | |
| Ethernet (TCP/IP) interface | Note 3 | n/a | ||
| Modbus (RTU /TCP) | Note 3 | n/a | O | |
| PROFIBUS DPV1 interface + 4 Input/5 Relay Output | O1 | n/a | O1 | |
| PROFINET interface + 4 Input/5 Relay Output | ||||
| EtherNet/IP interface + 4 Input/5 Relay Output | ||||
| CANopen interface + 4 Input/5 Relay Output | ||||
| EtherCAT interface + 4 Input/5 Relay Output | ||||
| CC-Link interface + 4 Input/5 Relay Output | ||||
| Powerlink interface + 4 Input/5 Relay Output | ||||
| 2 Platform weighing | n/a | n/a | O | |
| BSI data interface (BSI-PRO, BSI-DIALOG) | n/a | Yes | ||
| Check-weighing | ||||
| Classifying by weight | ||||
| Filling (non-automatic filling mode) | ||||
| Piece Counting | ||||
| Volume calculation (from entered density) | ||||
| Weight Totalling | ||||
| Piece Totalling | ||||
| Pre-Tare entry | ||||
| Pre-Tare value storage (500 values) | ||||
| ID data (ID1, 500 records for stored items) | ||||
| ID Data (ID2, second set 500 records) | ||||
| Average Piece Weight storage for counting (500 values) | ||||
| Alibi Memory (999999 records) | O | |||
| Dynamic/Animal weighing (weighing unstable loads) | Yes | |||
| Semi-auto/Auto tare, auto tare clear | ||||
| Setpoint storage (500 sets) | ||||
| Unit selection (g, kg, t, lb, oz) | ||||
| Unit Switching (kg/lb, g/oz) | ||||
| Docket Printing, Print on demand, auto-print | ||||
| Label Printing (with Barcode2) | ||||
| Auto-zero tracking and auto-zero at power-up | ||||
| Motion detection | ||||
| Adaptive digital filter for faster measuring | ||||
| Electronic calibration (vCal) without test weights | ||||
| Electronic calibration (vCal) over field bus | ||||
| Zeroing and Taring via fieldbus | ||||
| Zero and Span calibrations over field bus | ||||
| Zero adjustment without span change | ||||
| Span adjustment with test weights | ||||
| Span adjustment without unloading the scale | ||||
| 3 point calibration (linearity correction) | ||||
| Programming by PT AzCom PC software | ||||
| 8 load cells 350 Ω or 16 load cells 700 Ω | ||||
| 100 – 240 VAC | ||||
| 12 to 28 VDC power supply range | ||||
| 1 000 to 999 999 display resolution | ||||
| High internal resolution up to 16 000 000 counts | ||||
| Up to 800 conversion per second | ||||
| RS-232C Serial interface | ||||
| RS-232C Second Serial interface | ||||
| RS-485 Serial interface | ||||
| USB Serial Interface | ||||
| BSI data interface (BSI-BASE) | ||||
| Continuous data output | ||||
| Fast Continuous data output | ||||
| 4 Digital Inputs, 5 relay outputs (4 DI / 5 RO) | O1 | |||
| Analogue output (4–20, 0–20mA,0–5, 0–10VDC)+4 DI / 5 RO | ||||
O = Option.
O1Â = Only one Option can be installed at a time.
2 = Third party barcode software required.
3 = Standard in PT610DM, optional in PT610WM and PT610PM.
n/a = Not Available
