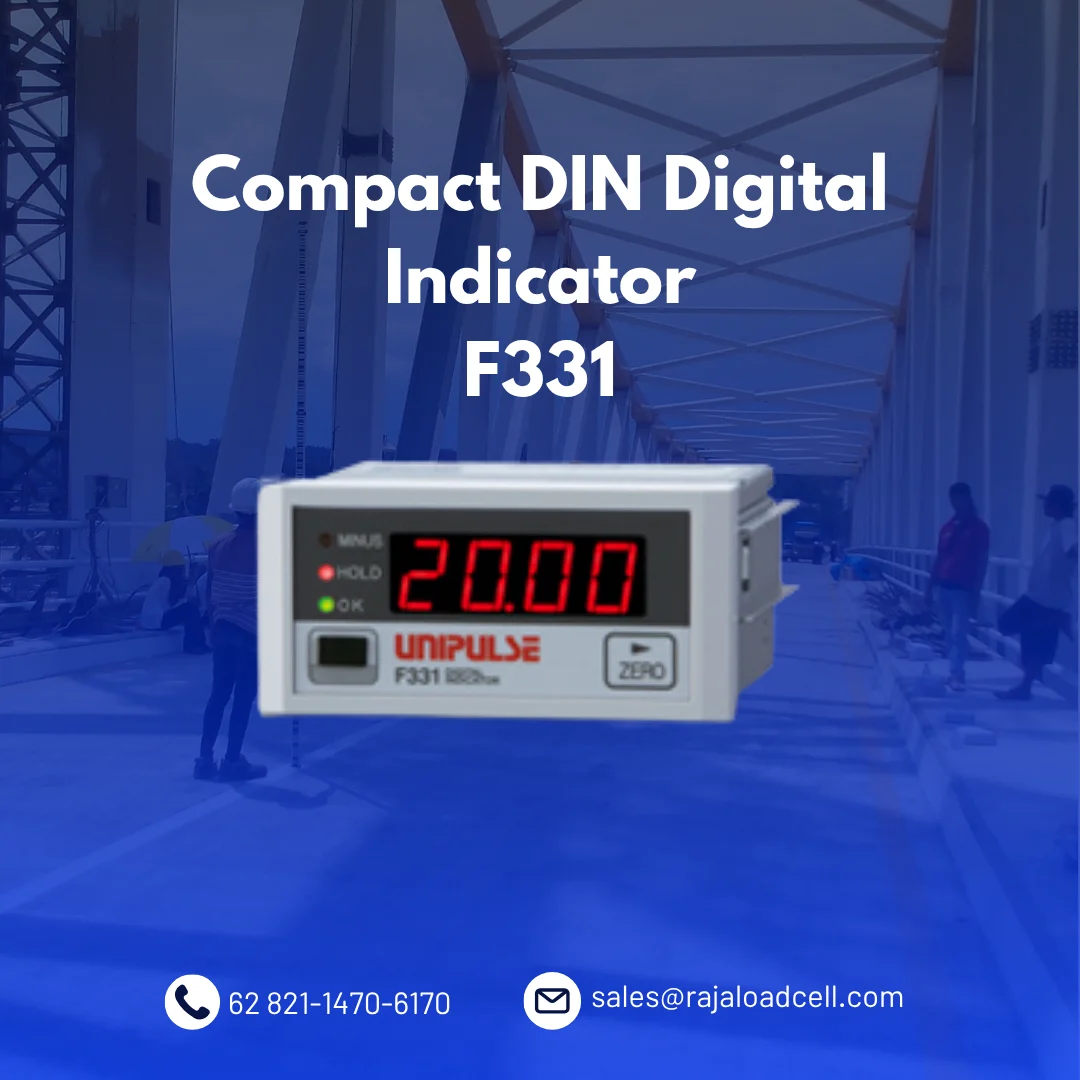

Specifications
| Analog section | |
| Sensor excitation voltage | DC 2.5 V±10% Output current within 30 mA : Standard specification 5 V spec. (Please specify when ordering.) (DC 5 V±10% Output current within 30 mA) |
|---|---|
| Signal input range | -3.0 to +3.0 mV/V |
| Accuracy | Non-linearity : Within 0.02% FS(at 3 mV/V input) Zero drift : Within 0.5 μV/℃ RTI Gain drift : Within 0.01%/℃ |
| A/D converter | Rate : 300 times/sec. Resolution : 24 bits (binary) |
| Hold function | Sample, Peak, Bottom, P-P |
| Display section | |
| Display | Character height 14.2 mm Numerical display (4-digits), by 7-segment red LED |
|---|---|
| Indicated value | Numeric 4-digits -9999 to +9999 (Minus is a most significant digit. It display at the status lamp.) |
| Decimal point | The display position is selectable. (0.000、00.00、000.0、0000) |
| Display items | Status display red LED ×2 (MINUS, HOLD) green LED ×1 (OK) |
| Display frequency | Selectable from 5, 10, 20 times/sec. |
| Setting section | |
| Setting method | Setting by specific PC software with USB interface. |
|---|---|
| Preservation of data | Stored in nonvolatile RAM (NOVRAM) |
| Key switch | ZERO |
| Setting items | Calibration: Zero calibration/ Span calibration (actual load calibration,equivalent input calibration) HH limit, HI limit, LO limit, LL limit, Hysteresis, Digital offset, Near zero, Comparison timing, Moving average filter, Digital low-pass filter*, Hold mode, ZERO key valid/invalid, Display frequency, Decimal place, External output selection, Indicator ID, Loadcell ID, BCD output mode, BCD data update rate, BCD output selection, D/A output mode, D/A zero scale, D/A full scale, RS-485 communication mode, RS-485 I/F setting, RS-485 ID, RS-485 transmission delay time, RS-232C communication mode, RS-232C I/F setting, Setting value LOCK (485/232), Calibration value LOCK (485/232) ※3, 6, 12Hz selectable |
| External signal | |
| Comparison output (2 points), Hold/judgment signal input, Digital zero signal input | |
| Interface (Only one option can be installed) | |
| USB (Standard) | USB interface Communication standard: Compliant with USB Ver.2.0 Communication speed :Full speed (12 Mbps) Class: Communication device class OS: Windows7/10/11 Virtual COM port: Set values can be read and written by specific PC software. Connector: mini-B TYPE |
|---|---|
| BCD | BCD parallel data output interface (sink type)(Option) |
| DAI | D/A converter (current output)(Option) |
| 485 | RS-485 communication interface (Select from Modbus-RTU and original format)(Option) |
| 232 | RS-232C communication interface(Option) |
| General specifications | |
| Power voltage | DC 24 V(±15%) |
|---|---|
| Power consumption | 2 W typ. |
| Inrush current | 0.7 A, 18 msec: DC 24 V average load condition (cold start at room temperature) |
| Operating conditions | Operation temperature: -10 to +40℃ Storage temperature: -40 to +80℃ Humidity:85% RH or less(non-condensing) |
| Dimension | 96(W) × 48(H) × 132.5(D) mm (Not including projections) |
| Weight | Approx.550 g |
| Attachments | |
| Quick manual | 1 |
|---|---|
| Signal input/output terminal block (Already mounted on the main unit) | 1 |
| BCD output connector (When BCD output option is selected) | 1 |
| Short bar (When RS-485 option is selected) | 1 |
| Optional accessories | |
| CN51 | BCD output connector |
|---|---|
| TSU03 | DC lighting surge unit |
| CN88 | Signal input/output terminal block (Same as the attachment) |
Structure of product code
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
