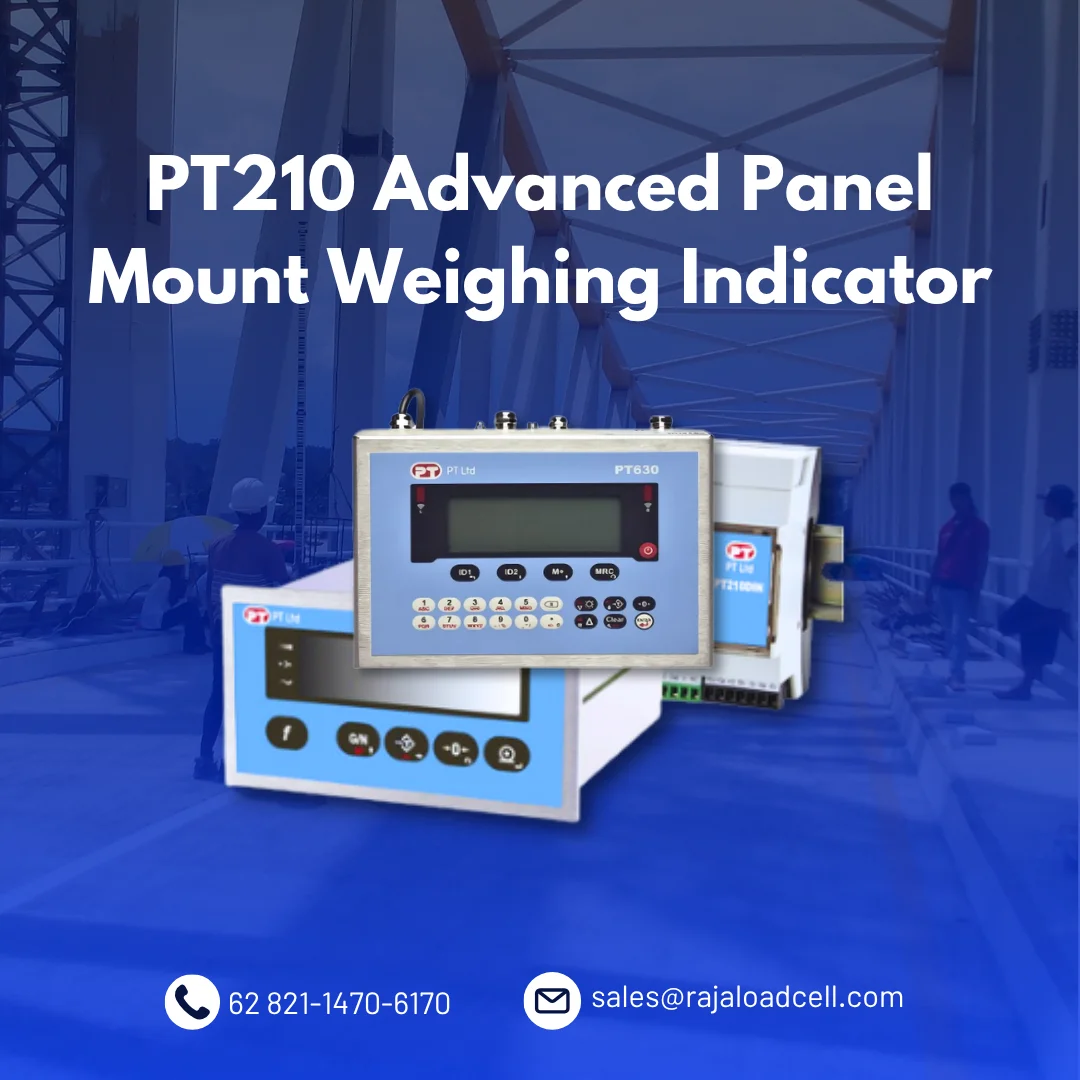

Weighing Indicator, Advanced Panel Mount Series – PT210

Categories ,

PT210 – Product Datasheet & Specifications
Pdf_icon PT210 Datasheet
Product Brochure and Specifications
SPECIFICATIONS
Power Supply 12–28VDC max., 300mA.
Non-linearity <0.0015% FSO
Temperature Coefficient <2 ppm/ºC
Load Cell Excitation 5V, 120mA max. (8×350Ω / 16×700Ω, 4 or 6 wire)
Input Range 0mV to +18mV (weighing), ±18mV (bidirectional), Min. 0.1 μV/division
Zero Adjustment Range -18mV to +18mV
Conversion Rate Up to 1600 times/second
Units g, kg, t, lb, klb, N, kN
Resolution Max. 999999 displayed, 16000000 internal, 24-bit Delta Sigma ADC
Display 6-digit, 7-segment red LED, 13.5 mm
Display Annunciators Gross, net, motion, centre of zero, units
Keypad 5-key (Function, G/N, Tare/Clear, Zero, Print) with lock
Operating Environment -15ºC to +55ºC, max. 85% RH, non-condensing, IP67 front panel
Enclosure and Dimensions Stainless steel front, aluminium casing, 100×55 mm, cut-out 92×47 mm
Calibration Span calibration with/without zero, vCal, fieldbus commands
Weighing Functions Tare, zeroing, auto zero track, motion detect, peak hold, hold
Digital Filter Adjustable in 10 steps
Other Functions Preset label counter, gross/tare indicator
Print Ticket Format Single or multi-line programmable
Input/Output Up to 4 digital inputs (12–28VDC), 5 relay outputs for setpoint or fieldbus
RS-232C 1200–115200 baud, continuous, printer, BSI
RS-485 1200–115200 baud, up to 31 devices
Modbus RTU 1200–115200 baud, up to 31 devices
Ethernet TCP / Modbus TCP 10 Mbit/s, half duplex, galvanic isolation
EtherNet/IP 10/100 Mbit/s, full/half duplex, isolated
PROFIBUS DP V1, 9.6 kbps to 12 Mbps, auto baud rate
PROFINET 100 Mbit/s, full duplex, isolated
CANopen 10 kbps to 1 Mbps, auto baud rate
Analogue Output 4–20 mA, 0–20 mA, 0–5 VDC, or 0–10 VDC configurable

table (Due t

Azure Series Advanced Controller.

The PT210 is a smart indicator for industrial weighing process applications offering powerful PLC integration facilities; standard serial ports such as RS-232C, RS-485, up to 4 digital inputs and 5 relay outputs.

The PT210 Series is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 10000 scale intervals in accordance with OIML R76.

The PT210 is available in a range of versions to connect by various fieldbus protocols such as Ethernet, Modbus, Profibus, Profinet, CANopen and also a version with analogue output.
Powerful calibration options including vCal, Electronic calibration without test weights supporting fast easy setup and service. The PT210 features adaptive filtering for fast settling, high display resolution and a speed of up to 1600 conversions per second.

It’s small size aluminum body is perfect for panel installations, providing a big display and requiring little space on control panels. The instrument has a stainless steel front for use in harsh environments.

INTEGRATION

  • RS-232C, RS-485
  • Analogue output
  • Ethernet TCP/IP
  • Modbus RTU
  • Modbus TCP
  • Profibus
  • Profinet
  • CANopen
FEATURES

  • Up to 1600 measurements per second
  • 16,000,000 internal resolutions
  • Up to 100000 scale divisions
  • OIML R76 Approved models
  • Up to 8x 350 Ω load cells
  • Programmable for tension – compression testing with analogue output.
  • Bright 13.5 mm LED display
  • Multiple units (g, kg, t, lb, klb, N, kN)
  • vCal Electronic calibration from PC
  • Linearity correction
  • Gravity compensation adjustment
  • Programmable via PC
  • RS-232C & RS-485 serial interfaces
  • 12 – 28 VDC supply
  • up to 4 digital inputs, 5 Relay contact outputs
