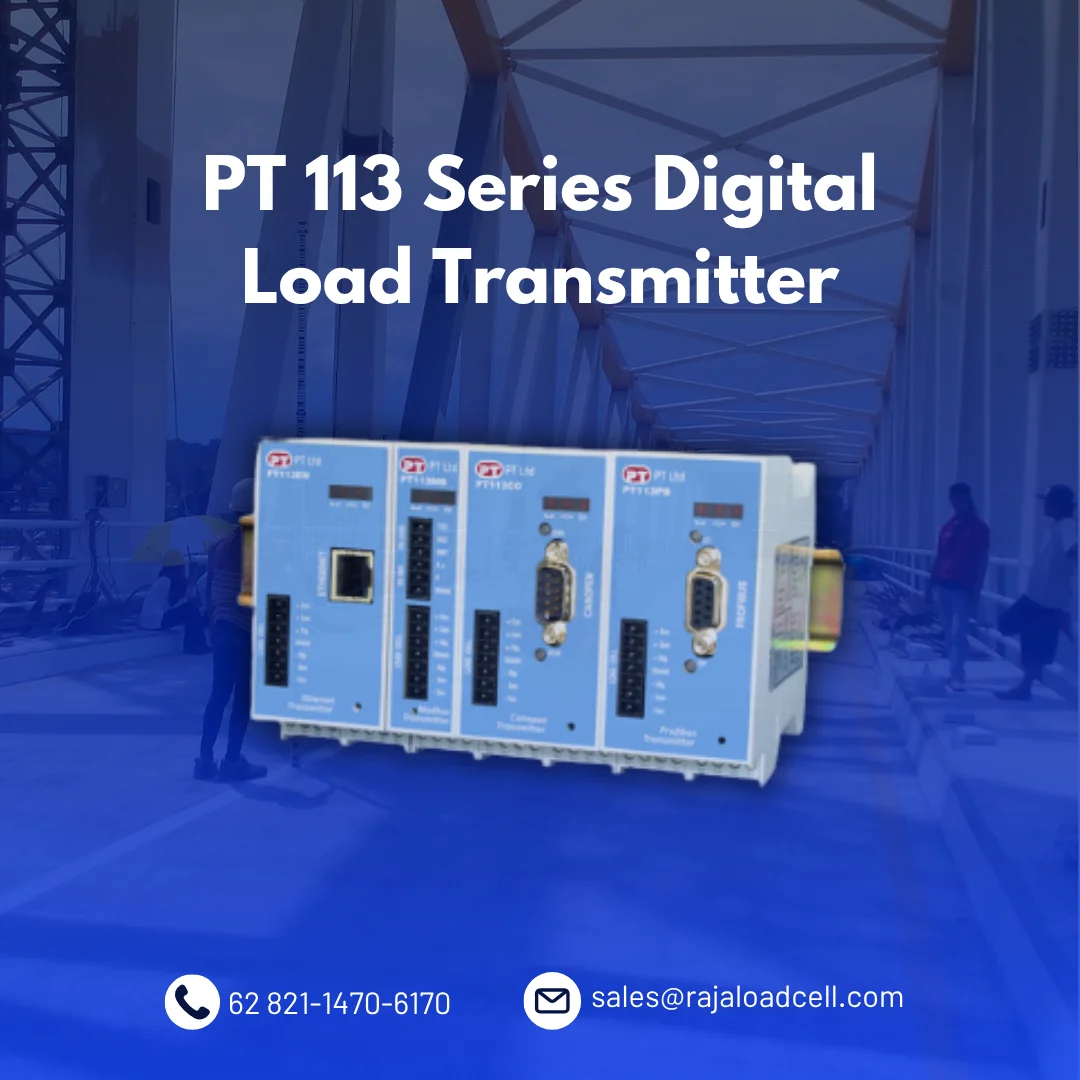

Digital Load Cell Transmitters – PT113 Series

Categories , ,





Pdf_icon PT113 Datasheet
Product Brochure and Specifications



SPECIFICATIONS
Power Supply: 11-28VDC max., 300mA.
Non-linearity: <0.0015% FSO
Temperature Coefficient: <2 ppm/ºC
Load Cell Excitation: 5V, 86mA max. (up to 6x 350Ω or 12x 700Ω load cells, 4 or 6 wire)
Input range: 0mV to +18mV (weighing).
-18mV to +18mV (bidirectional force)
Minimum 0.1 μV/division
Zero Adjustment Range: -18mV to +18mV
Span Adjustment Range: 0.2mV/V to 3.6mV/V input for full output
Conversion Rate: Up to 800 times per second
Resolution: Max. 100000, internal 8000000, 24 bit Delta Sigma ADC
Annunciators: Centre, zero, Err
Operating Environment: -10ºC to +40ºC; max. 85% RH, non-condensing
Enclosure and Dimensions: Polyamide, DIN-rail mount, Front Width:22.5(MB,AD) or 45mm x Height: 99mm, Depth:114.5mm, weight 0.45kg
Mounting: DIN rail 35 mm x 7.5 mm, DIN 46277-3
Calibration: Span calibration with weights by RS-232, fieldbus or AzCom software.
vCal for calibration by direct entry of load cell characteristics with AzCom software.
In count mode all instruments are factory calibrated for on site calibration in the PLC.
Weighing Functions: Tare, zero, auto zero tracking, motion detection, auto-zero at power-up.
Digital Filter: Adaptable filter adjustable in 10 steps.
RS-232C: 9600 baud, 8N1. Continuous, Command, BSI
RS-485: 1200 to 57600 baud, programmable. Up to 31 units on the bus
Modbus RTU: 1200 to 57600 baud, programmable, up to 31 units on the RS-485 bus.
Modbus TCP (on Ethernet): 10 Mbit/s (half duplex), galvanically isolated.
PROFIBUS: PROFIBUS DP V1. 9.6 kbit/s to 12 Mbit/s automatic baud rate detection.
PROFINET: 100 Mbit/s (full duplex), galvanically isolated.
EtherNet/IP: 10/100 Mbit/s (full duplex), galvanically isolated.
EtherCAT: 100 Mbit/s (full duplex), galvanically isolated.
CANopen: 10 kbit/s to 1 Mbit/s automatic baud rate detection.

table



Azure Signature Series Digital Transmitters. Serial, command, Modbus, Ethernet, Profibus, Profinet, Ethernet/IP, EtherCAT, CanOpen.

The PT113 digital transmitter family is designed for static or dynamic weighing, force and pressure measurement processes to provide fast and accurate digital data through RS-232C, RS-485, Ethernet TCP/IP and fieldbus systems such as PROFIBUS, Modbus TCP, Modbus RTU, PROFINET, Ethernet/IP, EtherCAT and CANopen.
Weighing functions such as Zeroing, Taring, Power-On zero, Net indication at power on, Motion detection, etc. are integrated into PT113 transmitters.
The PT113 has configurable vibration suppressing digital filter settings, calibration with a calibration weight or by electronic calibration without calibration weights (dCal ) via PT AzCom software.
DIN rail type enclosures provide easy mounting in control cabinets.INTEGRATION

  • RS-232C, RS-485
  • Modbus RTU
  • Modbus TCP on Ethernet
  • PROFIBUS
  • PROFINET
  • EtherNet/IP
  • EtherCAT
  • CANopen
  • **Enquire for more protocols

FEATURES

  • Up to 100 measurements per second
  • 8,000,000 internal resolutions
  • Up to 100000 scale divisions for weighing
  • Uni-directional or Bidirectional measurement mode for tension/compression
  • Up to 6x 350 Ω load cells
  • Weighing functions: Zeroing & taring, power-on zero, AZT, net indication at power on, motion detection.
  • Industrial design with small size and standard DIN rail mounting
  • vCal Electronic calibration from PC
  • Programmable via PC or fieldbus
  • RS-232C serial interface for programming with AzCom software via PC
  • 11 – 28 VDC supply
Hubungi via WhatsApp

Description





Pdf_icon PT113 Datasheet
Product Brochure and Specifications



SPECIFICATIONS
Power Supply: 11-28VDC max., 300mA.
Non-linearity: <0.0015% FSO
Temperature Coefficient: <2 ppm/ºC
Load Cell Excitation: 5V, 86mA max. (up to 6x 350Ω or 12x 700Ω load cells, 4 or 6 wire)
Input range: 0mV to +18mV (weighing).
-18mV to +18mV (bidirectional force)
Minimum 0.1 μV/division
Zero Adjustment Range: -18mV to +18mV
Span Adjustment Range: 0.2mV/V to 3.6mV/V input for full output
Conversion Rate: Up to 800 times per second
Resolution: Max. 100000, internal 8000000, 24 bit Delta Sigma ADC
Annunciators: Centre, zero, Err
Operating Environment: -10ºC to +40ºC; max. 85% RH, non-condensing
Enclosure and Dimensions: Polyamide, DIN-rail mount, Front Width:22.5(MB,AD) or 45mm x Height: 99mm, Depth:114.5mm, weight 0.45kg
Mounting: DIN rail 35 mm x 7.5 mm, DIN 46277-3
Calibration: Span calibration with weights by RS-232, fieldbus or AzCom software.
vCal for calibration by direct entry of load cell characteristics with AzCom software.
In count mode all instruments are factory calibrated for on site calibration in the PLC.
Weighing Functions: Tare, zero, auto zero tracking, motion detection, auto-zero at power-up.
Digital Filter: Adaptable filter adjustable in 10 steps.
RS-232C: 9600 baud, 8N1. Continuous, Command, BSI
RS-485: 1200 to 57600 baud, programmable. Up to 31 units on the bus
Modbus RTU: 1200 to 57600 baud, programmable, up to 31 units on the RS-485 bus.
Modbus TCP (on Ethernet): 10 Mbit/s (half duplex), galvanically isolated.
PROFIBUS: PROFIBUS DP V1. 9.6 kbit/s to 12 Mbit/s automatic baud rate detection.
PROFINET: 100 Mbit/s (full duplex), galvanically isolated.
EtherNet/IP: 10/100 Mbit/s (full duplex), galvanically isolated.
EtherCAT: 100 Mbit/s (full duplex), galvanically isolated.
CANopen: 10 kbit/s to 1 Mbit/s automatic baud rate detection.

table
