| Spesifikasi / Specification | Nilai / Value |
|---|---|
| Kapasitas Terukur1 (Rated Capacity) | 15 kg |
| Batas Lebih Beban (Over Range) | 150% F.S. |
| Resolusi (Resolution) | 0.025% F.S. |
| Akurasi2 (Accuracy) | ±0.1% F.S. |
| Rentang Suhu Operasional3 (Temperature Range) | −20 °C ~ +80 °C |
| Panjang × Diameter (Length × Diameter) | 94 × 19 mm (transduser) |
Characteristics and Applications
Model 4915 terdiri atas transduser kawat bergetar, yang ditempatkan di dalam silinder baja tahan karat berdinding tebal, yang dirancang untuk menyediakan sarana pemantauan beban tarik yang sangat stabil dan sensitif dalam sistem penimbangan in-line, seperti alat pengukur hujan jenis penimbangan, sistem penimbangan proses, dan pabrik pencampuran.

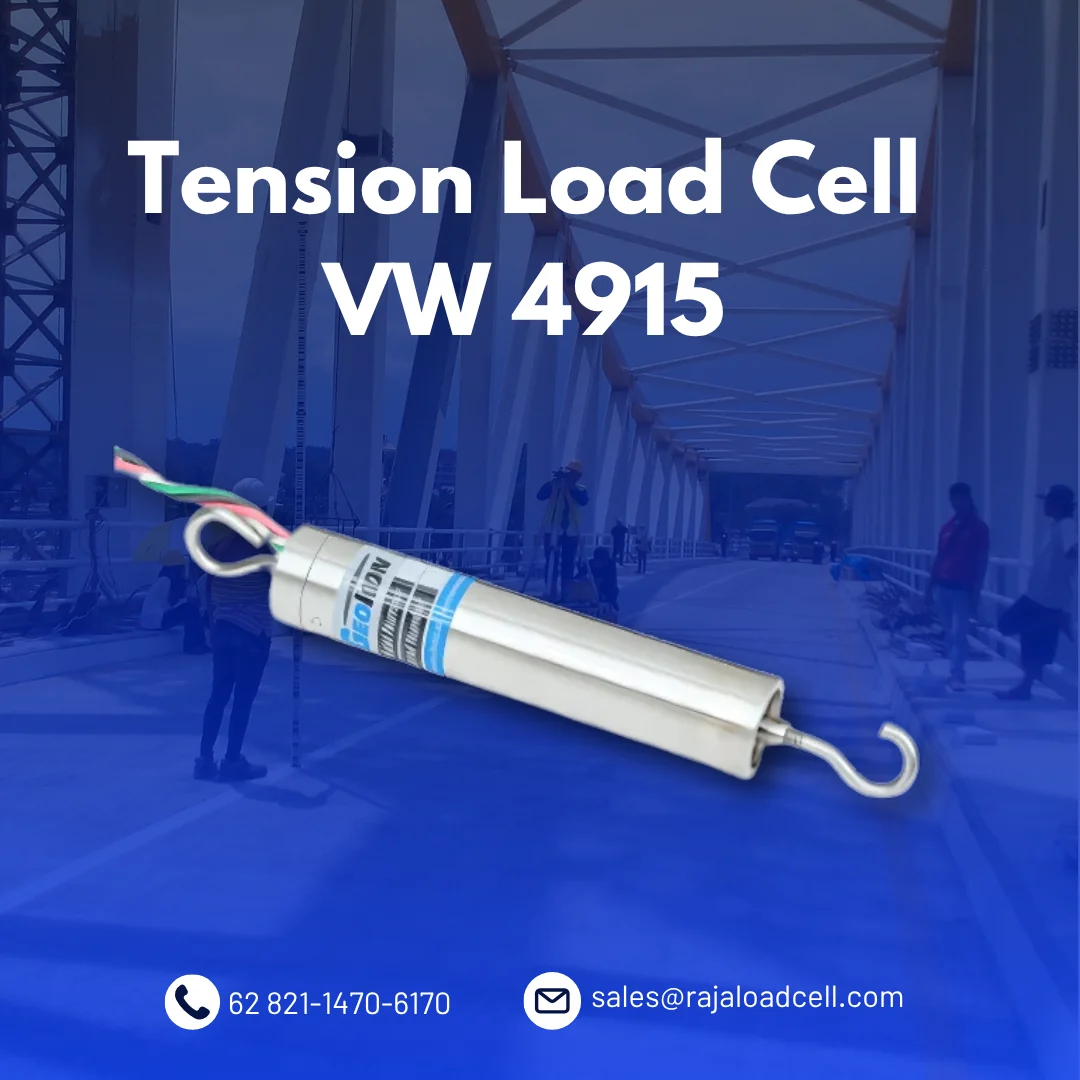

The Model 4915 Load Cell consists of a vibrating wire transducer, housed inside a thick-walled stainless steel cylinder, designed to provide a highly stable and sensitive means of monitoring tensile loads in in-line weighing systems, such as weighing type rain gauges, process weighing systems and batching plants.
| Spesifikasi / Specification | Nilai / Value |
|---|---|
| Kapasitas Terukur1 (Rated Capacity) | 15 kg |
| Batas Lebih Beban (Over Range) | 150% F.S. |
| Resolusi (Resolution) | 0.025% F.S. |
| Akurasi2 (Accuracy) | ±0.1% F.S. |
| Rentang Suhu Operasional3 (Temperature Range) | −20 °C ~ +80 °C |
| Panjang × Diameter (Length × Diameter) | 94 × 19 mm (transduser) |
