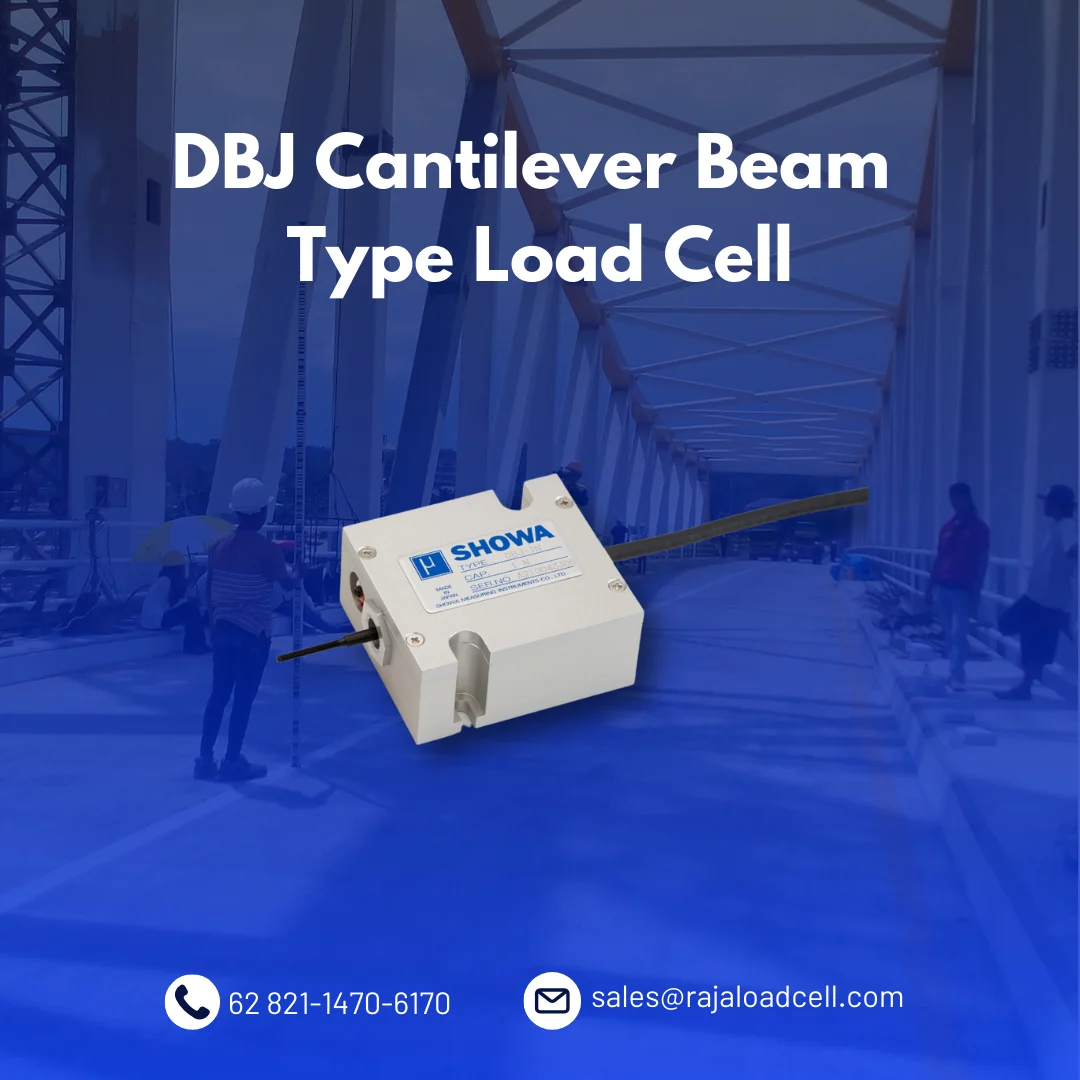

DBJ Cantilever Beam Type Loadcell

Category Loadcell

Covering the minute wide capacity range 1 to 20N.
Using special designed 350Ω strain gages for the detection of load, thereby, an excellent linearity or thermal coefficient of 0.025%RO can be attained.
Attractive load charactetistics in maximum overload (200%RO) and in side load (40%).
Guaranteeing the load leaving off coefficient up to 5 cm maximum and within 0.005%/cm.
A specially designed mounting table (Optionally supplied) can be utilized as a measuring unit.

Description

Covering the minute wide capacity range 1 to 20N.
Using special designed 350Ω strain gages for the detection of load, thereby, an excellent linearity or thermal coefficient of 0.025%RO can be attained.
Attractive load charactetistics in maximum overload (200%RO) and in side load (40%).
Guaranteeing the load leaving off coefficient up to 5 cm maximum and within 0.005%/cm.
A specially designed mounting table (Optionally supplied) can be utilized as a measuring unit.
