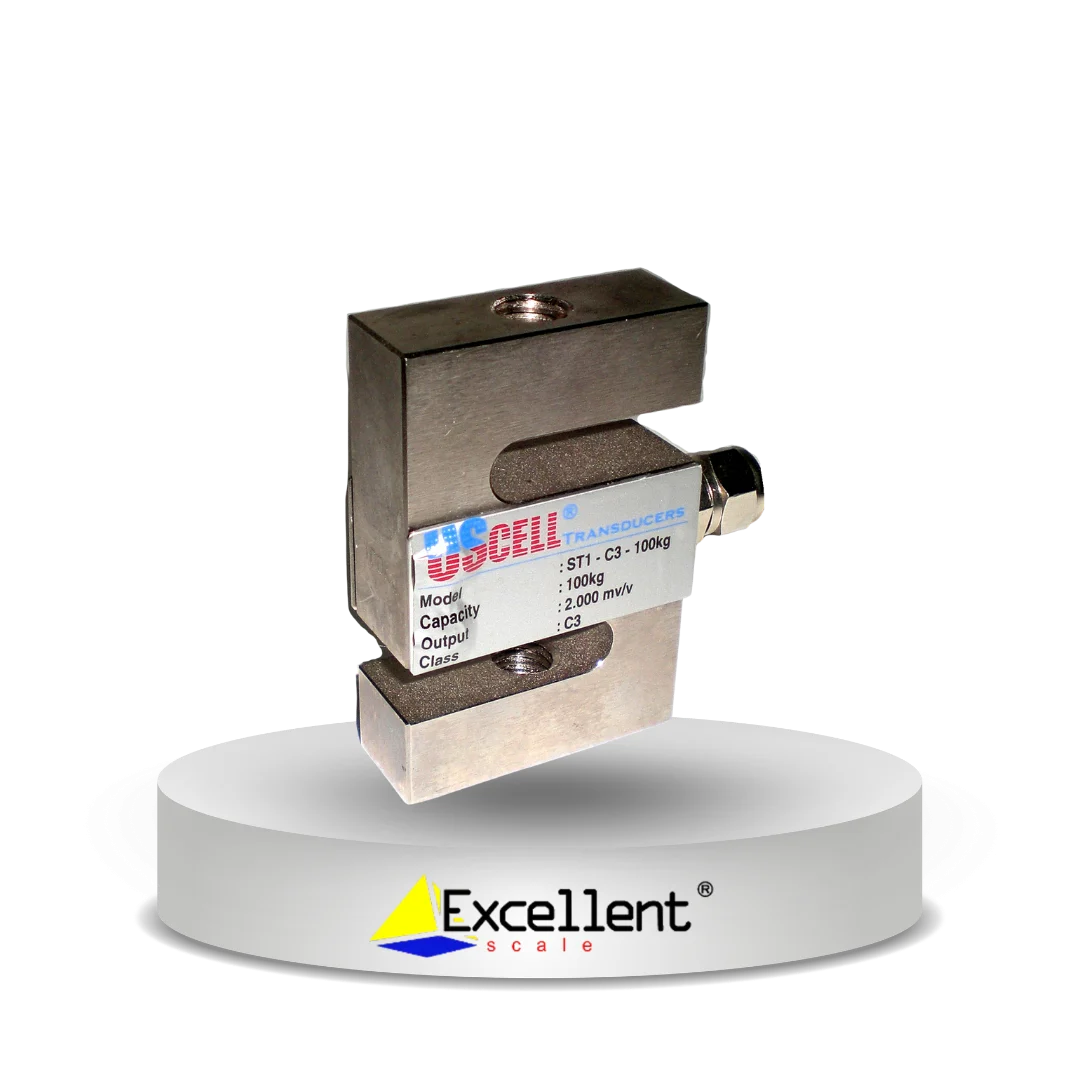

Description
| Technical Parameter | Value |
| Rated Load | 50kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 1t |
| Rated Output | $2.0000 \pm 0.001 \text{ mV/V}$ |
| Total Error | $\pm 0.02\% \text{ F.S}$ |
| Creep (30 minutes) | $\pm 0.02\% \text{ F.S}$ |
| Recommended Excitation Voltage | 5V ~ 12V (AC or DC) |
| Maximum Excitation Voltage | 15V (AC or DC) |
| Zero Balance | $\pm 1\% \text{ F.S}$ |
| Input Impedance | $380 \pm 5 \Omega$ |
| Output Impedance | $350 \pm 2 \Omega$ |
| Insulation Impedance | $\ge 5000 \text{ M}\Omega$ |
| Safe Overload | 150% F.S |
| Ultimate Overload | 200% F.S |
| Operating Temperature Range | (-30 ~ +70)°C |
| Compensated Temperature Range | (-20 ~ +60)°C |
| Temperature Effect On Load | $\pm 0.02\% \text{ F.S / 10°C}$ |
| Temperature Effect On Zero | $\pm 0.02\% \text{ F.S / 10°C}$ |
| Construction | Alloy Steel |
| Protection Class | IP67 |
| Citation | GB/T7551-2008 / OIML R60 |
| Mode of Connection |
Input+: Red
Input-: Black
Output+: Green
Output-: White |
