Description

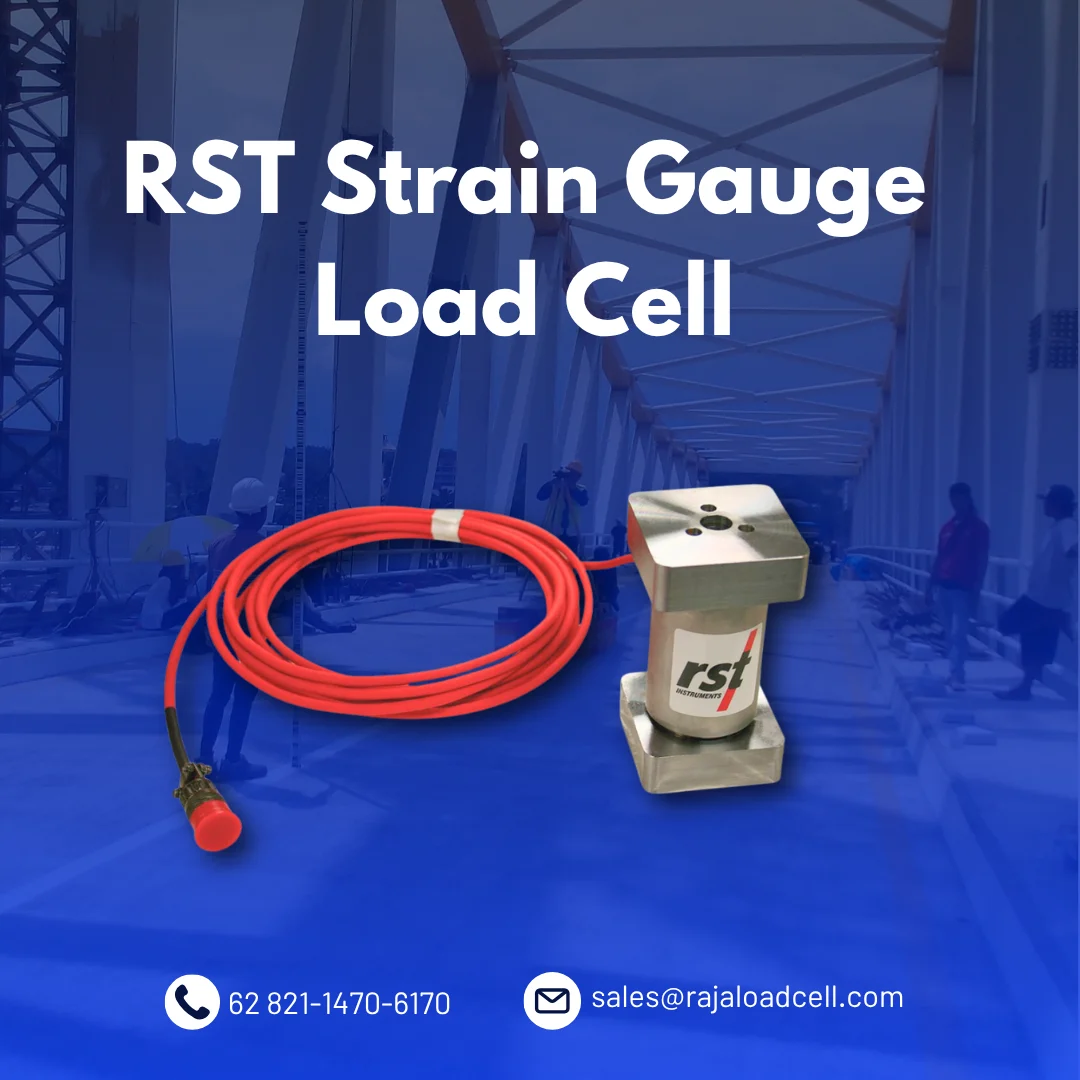

Spesifikasi Teknis Load Cell Tipe Strain Gauge / Strain Gauge Load Cell Specifications
| Spesifikasi / Specification | Nilai / Value |
|---|---|
| Kapasitas (Capacity) | 22.5 kN – 10675 kN (5,000 – 2,400,000 lbs) |
| Ukuran Lubang (Hole Size) | 16 mm – 356 mm (5/8 in. – 14 in.), sesuai kebutuhan / as required |
| Bahan (Material) | Baja kekuatan tinggi atau elemen stainless / High strength steel or stainless elements |
| Kompensasi Suhu (Temperature Compensation) | −40°C ~ +40°C (−40°F ~ +107°F) |
| Batas Lebih Beban (Overrange) | 100% dari skala penuh / Full Scale (FS) |
| Sensitivitas (Sensitivity) | ±2.0 mV/V |
