Description
Parameter Teknis / Technical Parameters
| Parameter | Technical Parameter | Nilai / Value |
|---|---|---|
| Kapasitas | Capacity | 15000 kg |
| Order Kode | Order Code | DOM015TT000XXX |

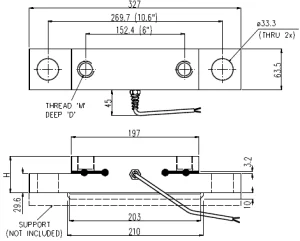

| Dimensi (mm) | Dimensions (mm) | M: 1″-14 tpi UNS, D: 20.3, H: 56.5 |
| Berat | Weight | 6.9 kg (each) |
| Output Sinyal | Signal Output at Capacity | 1.25 ±10% mV/V |
| Zero Balance | Zero Balance | < 2% Capacity |
| Galat Gabungan | Combined Error | < 1.000% FSO |
| Beban Layanan | Service Load | 100% Capacity |
| Beban Aman | Safe Load | 120% Capacity |
| Beban Maksimum | Ultimate Load | 150% Capacity |
| Torsi Pemasangan | Fixing Torque | 230Nm / 170 ft-lb |
| Resistansi Input | Input Resistance | 387Ω ± 25Ω |
| Resistansi Output | Output Resistance | 350Ω ± 3.5Ω |
| Resistansi Isolasi | Insulation Resistance | > 5000 MΩ (@50 VDC) |
| Rentang Suhu Kerja | Operating Temperature Range | -35 ~ +70°C |
| Rentang Suhu Simpan | Storage Temperature Range | -40 ~ +80°C |
| Rentang Suhu Terkompensasi | Compensated Temperature Range | -10 ~ +40°C |
| Tegangan Eksitasi | Excitation Voltage (Recommended) | 5 ~ 12 V AC/DC |
| Tegangan Eksitasi Maksimum | Excitation Voltage (Max) | 18 V AC/DC |
| Jenis Kabel | Cable Type | 4 core shielded, selubung PUR |
| Diameter/Panjang Kabel | Cable Diameter/Length | 5.0 mm, 10 m |
| Perlindungan | Protection | Adhesive sealed, IP67 |
| Warna Kabel | Cable Wiring | Excitation +ve = Merah / Red Excitation -ve = Hitam / Black Signal +ve = Hijau / Green Signal -ve = Putih / White |
