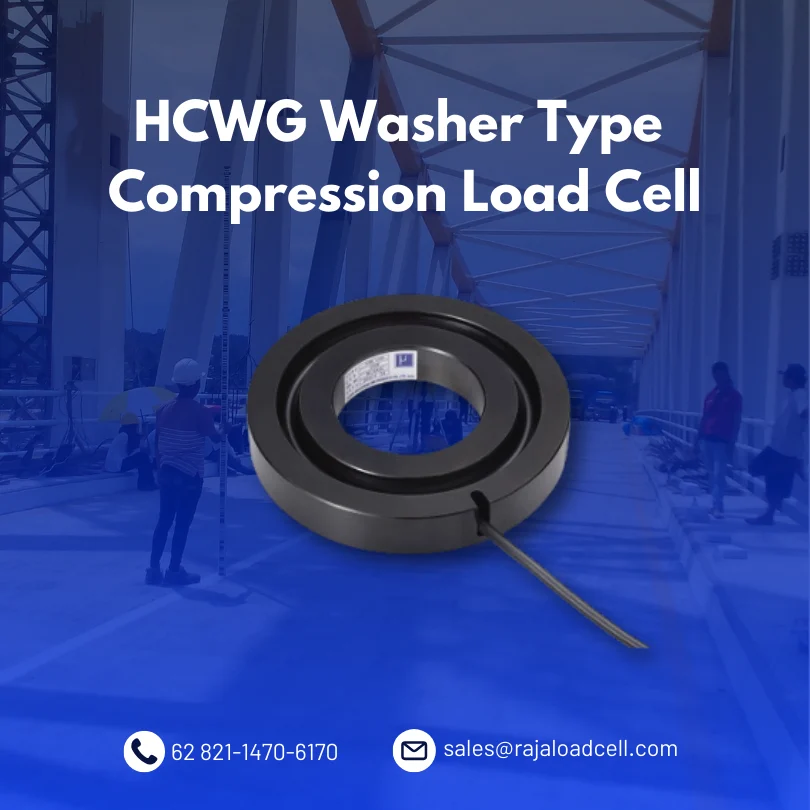

HCWG Washer Type Compression Load Cell

Description

Specifications & Standards
Permissible overload 150 %R.C.
Rated power 1 mV/V±1%
Linearity 0.3 %R.O. (500kN ～ 2MN)
0.5 %R.O. (5MN)
hysteresis 0.3 %R.O. (500kN ～ 2MN)
0.5 %R.O. (5MN)
Repeatability 0.2 %R.O. (500kN ～ 2MN)
0.3 %R.O. (5MN)
Recommended applied voltage 12 V or less
Permissible applied voltage 20 V
Input Resistance 350 Ω
Output Resistance 350 Ω
Temperature Compensation Range -10～60 ℃
Permissible temperature range -30～80 ℃
Temperature effect at zero point 0.01 %R.O./℃
Temperature effect on output 0.01 %/℃
cable Φ8 mm – 4-core shielded cable 10 m, bare tip
