Description

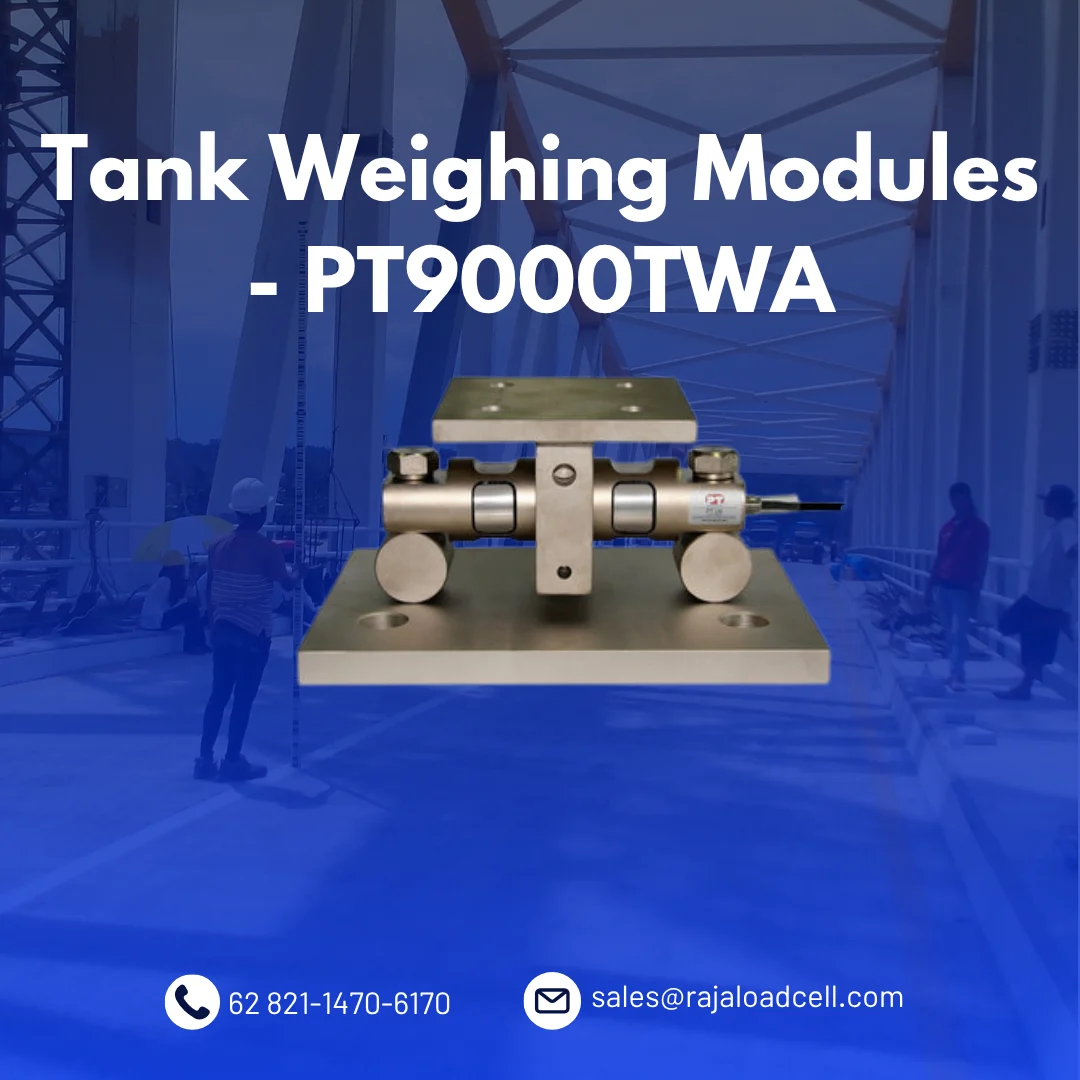

| Spesifikasi PT9000TWA | |
|---|---|
| Keluaran Sinyal pada Kapasitas | 3±0.003 mV/V |
| Error Linieritas | < 0.020% FSO (< 0.030% FSO*) |
| Non-Repeatability | < 0.010% FSO |
| Error Gabungan | < 0.020% FSO (< 0.030% FSO*) |
| Histeresis | < 0.020% FSO |
| Perayapan (30 menit) | < 0.020% FSO (< 0.030% FSO*) |
| Zero Balance | < 1% Kapasitas |
| Efek Suhu pada Span (/10°C) | < 0.014% FSO (< 0.02% FSO*) |
| Efek Suhu pada Zero (/10°C) | < 0.018% FSO (< 0.025% FSO*) |
| Kapasitas Penahan Gaya Angkat | 10% Kapasitas |
| Kapasitas Penahan Gaya Samping | 10% Kapasitas (kecuali 100klb & 150klb: 5%) |
| Beban Servis | 100% Kapasitas |
| Beban Aman | 150% Kapasitas |
| Beban Ultimate | 300% Kapasitas |
| Resistansi Input | 700Ω ± 37Ω |
| Resistansi Output | 700Ω ± 7Ω |
| Resistansi Insulasi | > 5000 MΩ (@ 50 VDC) |
| Tegangan Excitation (Disarankan) | 9 ~ 12 V AC/DC |
| Tegangan Excitation (Maksimum) | 18 V AC/DC |
| Kabel (5klb – 20klb) | 4 inti, panjang 9m, diameter 5.0mm |
| Kabel (30klb – 250klb) | 4 inti, panjang 9m, diameter 8.0mm |
| Material | Baja |
| Rentang Suhu Operasional | -35 ~ 65 °C |
| Rentang Suhu Penyimpanan | -50 ~ 85 °C |
| Perlindungan | IP67 |
| Excitation +ve | MERAH |
| Sinyal +ve | HIJAU |
| Excitation -ve | HITAM |
| Sinyal -ve | PUTIH |
