Description
Spesifikasi Teknis / Technical Specifications
| Parameter | 4200 | 4200-6 / 4200-7 | 4200L | 4200HT | 4200HT-T | 4202 | 4204 | 4210 |
|---|---|---|---|---|---|---|---|---|
| Rentang¹ Range¹ |
3000 µε | 4200-6: 5000 µε 4200-7: 10000 µε |
3000 µε | 3000 µε | 3000 µε | 3000 µε | 3000 µε | 3000 µε |
| Resolusi Resolution |
1.0 µε | 2.0 – 5.0 µε | 1.0 µε | 1.0 µε | 1.0 µε | 0.4 µε | 1.0 µε | 0.4 µε |
| Akurasi² Accuracy² |
±0.5% F.S.³ | ±0.5% F.S. | ±0.5% F.S.³ | ±0.5% F.S.³ | ±0.5% F.S. | ±0.5% F.S.³ | ±0.5% F.S.³ | ±0.5% F.S.³ |
| Non-linearitas Nonlinearity |
< 0.5% F.S. | ±2.5 – 4.0% F.S. | < 0.5% F.S. | < 0.5% F.S. | < 0.5% F.S. | < 0.5% F.S. | < 0.5% F.S. | < 0.5% F.S. |
| Resistansi Koil Coil Resistance |
180 Ω | 180 Ω | 180 Ω | 120 Ω | 50 Ω | 50 Ω | 180 Ω | 180 Ω |
| Frekuensi Dasar⁴ Frequency Datum⁴ |
800 Hz | 800 Hz | 800 Hz | 800 Hz | 800 Hz | 2600 Hz | 1250 Hz | 2600 Hz |
| Koefisien Ekspansi Termal Thermal Coefficient of Expansion |
12.2 ppm/°C (kecuali model bervariasi) | |||||||
| Rentang Suhu Operasional Temperature Range |
−20°C hingga +80°C | −20°C hingga +80°C | −20°C hingga +80°C | −20°C hingga +200°C | −20°C hingga +220°C | −20°C hingga +80°C | −20°C hingga +80°C | −20°C hingga +80°C |
| Jenis Kabel Cable Type |
4-conductor, 2 twisted pairs, 22 AWG (untuk semua model) | |||||||
| Jaket Kabel Cable Jacket |
Red PVC, Ø4.75 mm | Red PVC, Ø4.75 mm | Red PVC, Ø4.75 mm | White Teflon®, Ø5.20 mm | White Teflon®, Ø5.20 mm | Red PVC, Ø4.75 mm | Red PVC, Ø4.75 mm | Blue PVC, Ø6.35 mm |

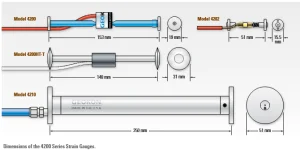

| Panjang Aktif Pengukur Active Gauge Length |
153 mm (6.025″) | 153 mm (6.025″) | 153 mm (6.025″) | 153 mm (6.025″) | 148 mm (1.9″) | 51 mm (2″) | 102 mm (4.016″) | 254 mm (10″) |
