HD-609B-S Tensile Testing Machines

HD-B609B-S

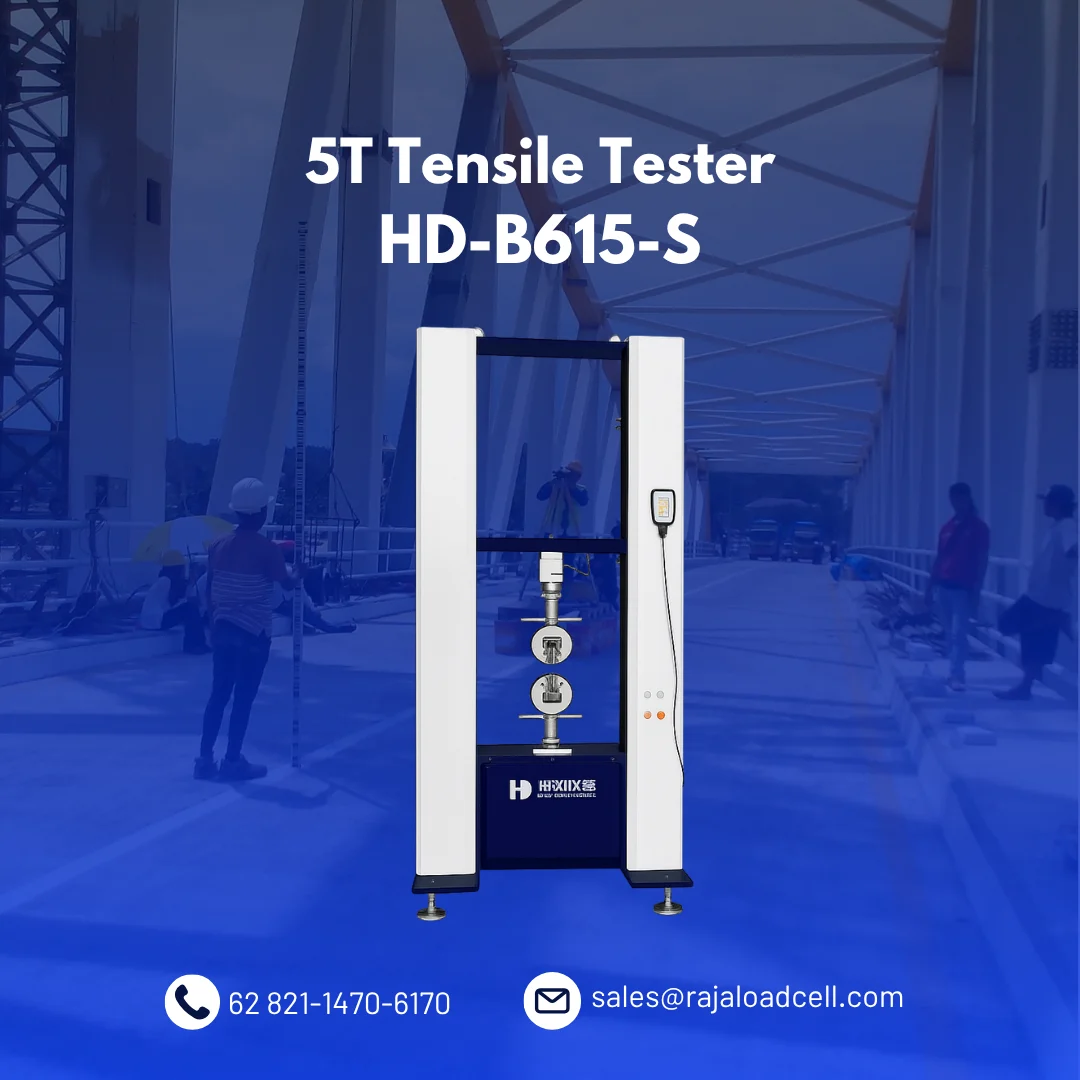

5T Tensile Tester HD-B615-S

Specifications:

Item

Parameters

Load capacity

5000kg

Load cell brand

Germany brand TECSIS load cell

Motor

750w Panasonic servo motor

Driver

750w Panasonic servo driver

Screw

High precision ball screw

Control way

Computer control, Windows 7 system

Adjustable speed

0.1-300mm/min

Vertical test space

1000mm (including clamp)

Load resolution

1/250,000

Load accuracy

≤0.5%

Unit switching

gf/kgf/N//kN/LBf/T

Dimension

(L*W*H) 980*510*2100mm

Suttle weight

About 360KG

Power

AC 220V

HD-B615-S 5T Tensile Tester, is professionally specialized in plastic film, composite, soft packaging materials, plastic hose, adhesive, adhesive tape, medical adhesive, medical device, release paper, protective film, composite cover, metal foil, diaphragm, backboard material, non-woven fabric, rubber, paper and other products of tensile, peeling, deformation, tear, bonding, puncture force, opening force, low speed unwinding force, pull force and other performance tests.

Description

Specifications:

Item

Parameters

Load capacity

5000kg

Load cell brand

Germany brand TECSIS load cell

Motor

750w Panasonic servo motor

Driver

750w Panasonic servo driver

Screw

High precision ball screw

Control way

Computer control, Windows 7 system

Adjustable speed

0.1-300mm/min

Vertical test space

1000mm (including clamp)

Load resolution

1/250,000

Load accuracy

≤0.5%

Unit switching

gf/kgf/N//kN/LBf/T

Dimension

(L*W*H) 980*510*2100mm

Suttle weight

About 360KG

Power

AC 220V
